Harley_Davidson_Superlow

Harley-Davidson has introduced its 2011 line-up and it starts with the 2011 Sportster SuperLow XL883L priced at Rs. 5.5 lakhs (ex-showroom, Delhi). The Harley SuperLow features Sportster tank, longer travel rear suspension, low seat height, and comfortable rider cock-pit. The Sportster tank is the classic Sportster peanut tank, with a 4.5 gallon capacity. The 2011 Harley-Davidson Sportster Iron 833 XL883N is priced at Rs. 6.5 lakhs (ex-showroom, Delhi). From the authentic Harley 883 cc engine to the chopped fenders to the peanut fuel tank, every piece of the Harley Sportster Iron 883 has the style you want in your custom motor bikes. Both bikes produce 70Nm of torque at 3750Rpm.The new reduced pricing is the result of CKD operations by the company in India. More models are expected to see a price reduction soon as the company starts assembling them locally.

Harley-Davidson_Iron_883

Harley-Davidson SuperLow Specifications : –

DIMENSIONS
Length                                  2,215 mm
Overall Width                      845 mm
Overall Height                     1,115 mm
Seat Height                          695 mm
Ground Clearance               100 mm
Wheelbase                          1,500 mm

TIRES
Radial tubeless low profile tires
Front                                    120/70 ZR-18
Rear                                     150/60 ZR-17
Fuel Capacity                      17 L
Oil Capacity                         2.7 L
Kerb Weight                        251 kg

ENGINE
Engine                                  Air-cooled, Evolution
Bore x Stroke                      76.2 mm x 96.8 mm
Displacement                     883 cc
Compression Ratio             8.9:1
Fuel System                        Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System            Dry-sump

DRIVETRAIN
Primary Drive                     Chain, 34/57 ratio
Final Drive – HDI                Belt, 29/68 ratio
Clutch                                 Multi-plate, wet
Transmission                     5-Speed

CHASSIS
Frame                                 Mild steel; tubular frame; circular sections; cast junctions
Swingarm                          Mild steel; rectangular tube section stamped junctions;
MIG welded
Front Forks                       39 mm Showa®
Rear Shocks                     Coil-over; preload dual-adjustable
Brakes, Caliper type       Dual-piston front, single-piston rear

ELECTRIC
Battery                               Sealed, maintenance-free, 12V, 12-amp/hour, 220 cca
Headlamp                          55-watt low beam, 60-watt high beam

Harley_Davidson_Superlow_Instrumentation

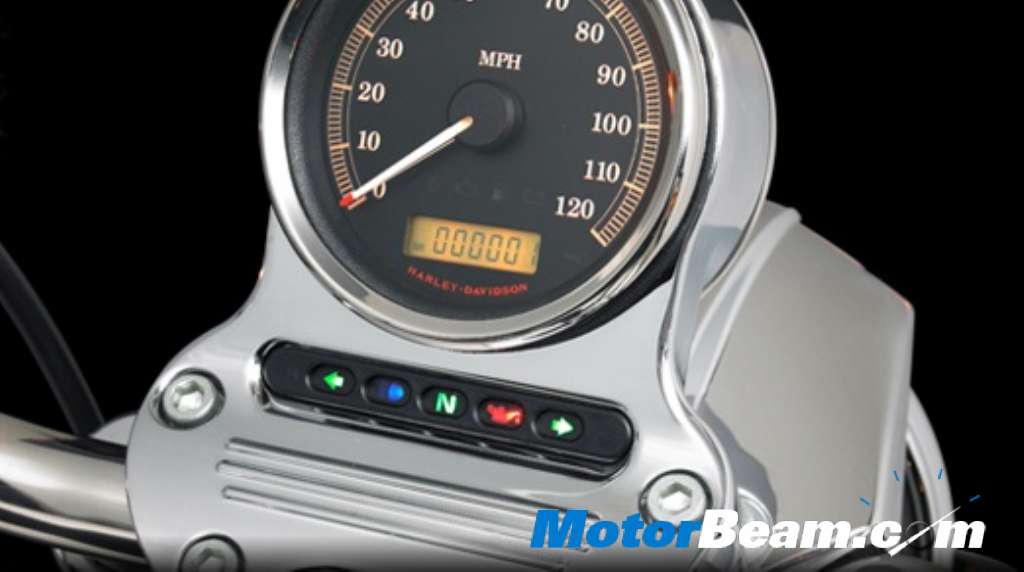

Harley_Davidson_Superlow_Speedo
